MIFENG
| BTU Model: | |
|---|---|
| TYPE: | |
| Voltage: | |
| Function: | |
| Availability: | |
| Quantity: | |
Enjoy a perfectly balanced indoor climate all year round. With advanced inverter technology, this air conditioner automatically adjusts performance to maintain your desired temperature with minimal energy usage.
With noise levels as low as 24dB, the unit operates almost silently, making it perfect for bedrooms and offices.
Sleep Mode automatically adjusts temperature
No disturbance during night operation
Ideal for light sleepers and families
Turbo Cooling & Heating
Instantly reaches your desired temperature within seconds.
Smart Inverter Control
Reduces energy consumption by up to 30% compared to conventional units.
Energy Efficient Heat Pump
Provides both cooling and heating with optimized efficiency.
Efficient, energy-saving cooling designed for hot summer comfort.
Clear temperature display on panel
Soft light, non-intrusive at night
Complete split-type air conditioner system including indoor & outdoor units, remote control, installation piping, wiring, and all accessories. Energy-efficient, wall-mounted design, easy installation with full kit included.
| COOLING ONLY,INVERTER,R410A,220V-240V/50Hz | ||||||
| Fixed speed (R410A) | AMSE-09CJ | AMSE-12CJ | AMSE-18CJ | AMSE-24CJ | ||
| Rated Power supply | 1Ph / 220-240V/50Hz | 1Ph / 220-240V/50Hz | 1Ph / 220-240V/50Hz | 1Ph / 220-240V/50Hz | ||
| Workable Power supply | 1Ph / 150-260V/50Hz | 1Ph / 150-260V/50Hz | 1Ph / 150-260V/50Hz | 1Ph / 150-260V/50Hz | ||
| Cooling | Capacity (btu/h) | 9000 | 12000 | 18000 | 24000 | |
| Capacity (W) | 2500(150~3000) | 3200(150~3600) | 4800(1250~5910) | 6810(1830~7800) | ||
| Input (W) | 900(100~1200) | 1180(75~1560) | 1780(330~2340) | 2350(410~2830) | ||
| Rated current (A) | 4.0(0.8~5.3) | 5.3(0.5~6.9) | 7.9(1.7~12.0) | 10.5(2.3~12.3) | ||
| EER | 2.78 | 2.71 | 2.7 | 2.9 | ||
| Max. input consumption (W) | 1600 | 1720 | 2520 | 3100 | ||
| Max. current (A) | 8.50 | 9.00 | 13.00 | 14.8 | ||
| Compressor | Type | Rotary | Rotary | Rotary | Rotary | |
| Brand | GMCC,GREE | GMCC | HIGHLY | GMCC | ||
| Indoor unit | Indoor Coil | Fin material | Golden& hydrophilic | Golden& hydrophilic | Golden& hydrophilic | Golden& hydrophilic |
| Tube outside dia.and material | φ7mm, inner Grooved | φ7mm, inner Grooved | φ7mm, inner Grooved | φ7mm, inner Grooved | ||
| Indoor air flow (Turbo/Hi/Mi/Lo) (M3/h) | 500/450/370/320 | 550/500/450/370 | 850/750/650/580 | 1050/950/800/680 | ||
| Rated input Power(cooling/heating) (W) | 30 | 30 | 35 | 45 | ||
| Rated current (cooling/heating) (A) | 0.2 | 0.2 | 0.35 | 0.4 | ||
| Moisture Removal (KG/h) | 0.8 | 0.8 | 2 | 2.6 | ||
| Noise level(Turbo/Hi/Mi/Lo) dB(A) | 39/34/32/30 | 42/39/36/33 | 45/42/39/37 | 49/47/45/42 | ||

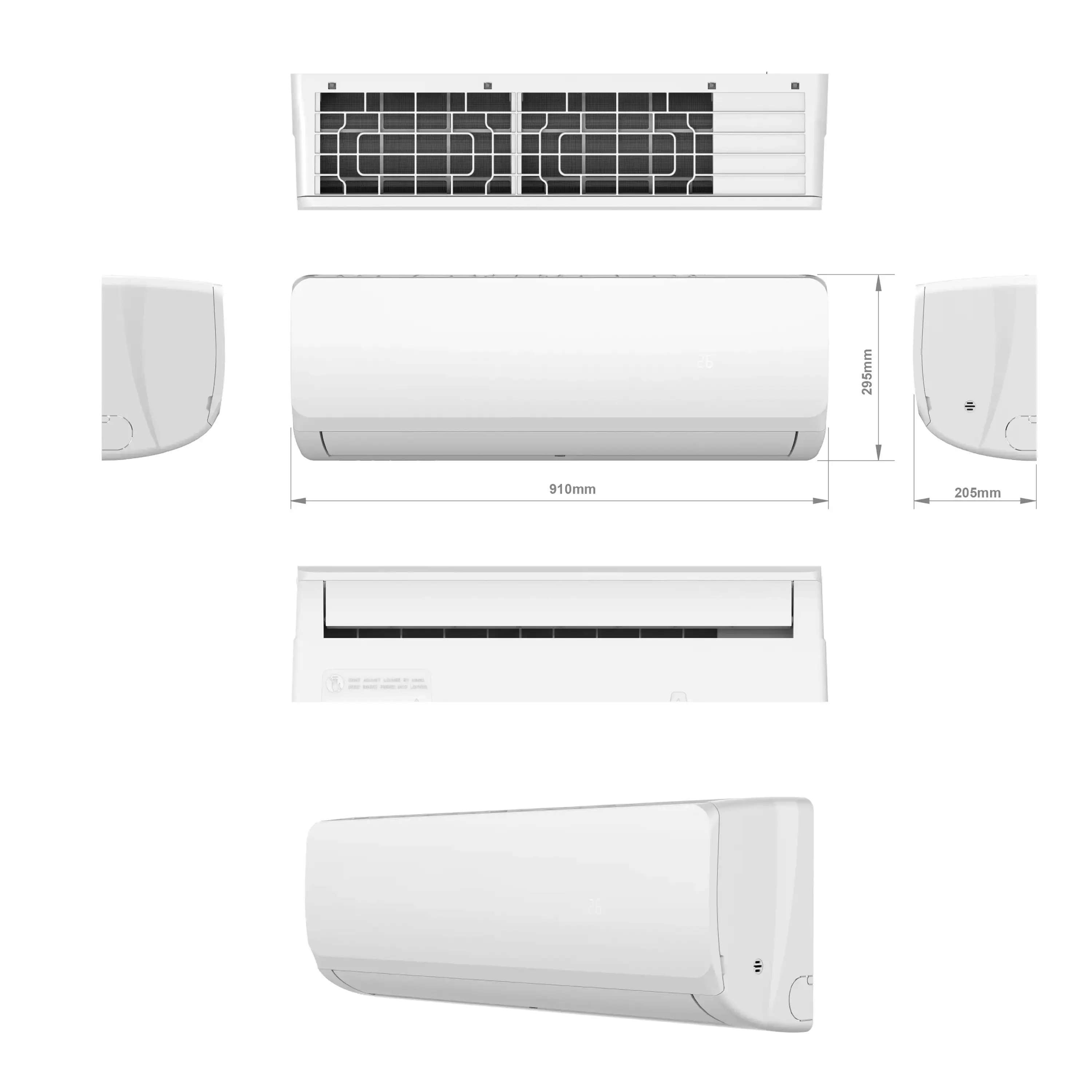

| Unit dimension (W*H*D) | 695×275×190 | 780×275×190 | 910×295×205 | 1030×360×248 | ||
| Packing (W*H*D) | 763×322×241 | 847×322×241 | 975×340×255 | 1094×434×324 | ||
| Net weight (KGs) | 6 | 6.5 | 10 | 13 | ||
| Gross weight (KGs) | 8 | 8.5 | 12 | 16 | ||
| Outdoor unit | Outdoor coil | Fin material | Golden& hydrophilic | Golden& hydrophilic | Golden& hydrophilic | Golden& hydrophilic |
| Tube outside dia.and material | φ5mm, Inner Grooved | φ5mm, Inner Grooved | φ7mm, Inner Grooved | φ5mm, Inner Grooved | ||
| Noise level dB(A) | 50 | 52 | 55 | 59 | ||

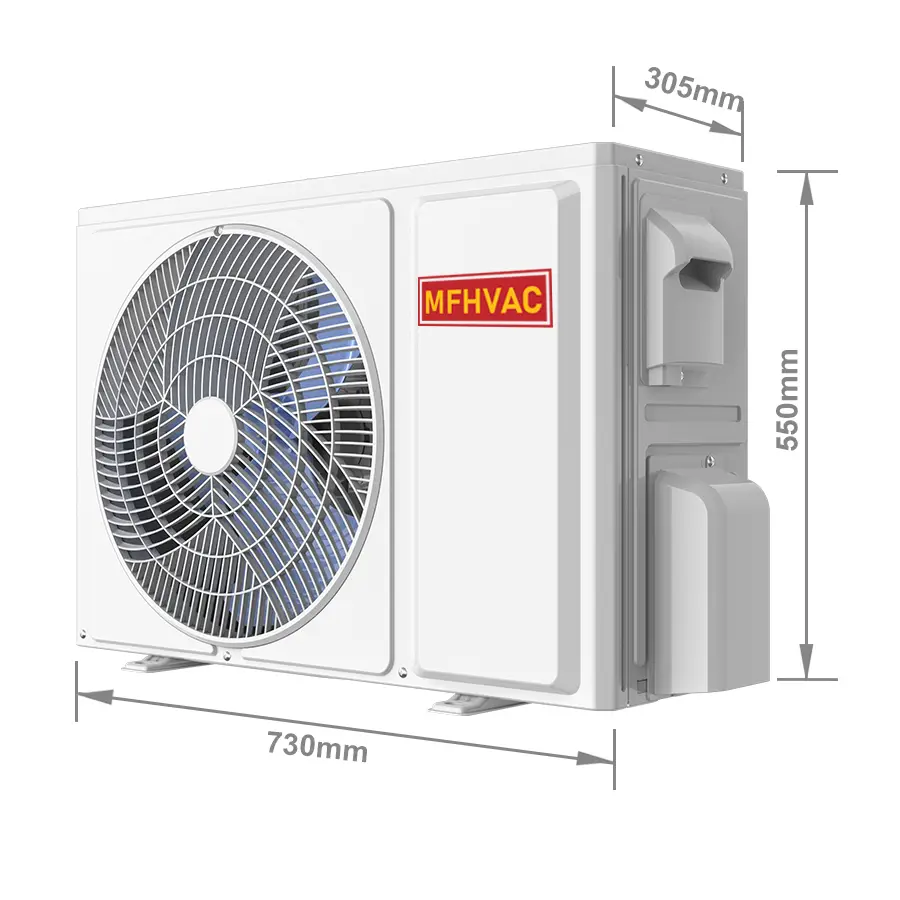

| Unit dimension (W*H*D) (mm) | 670(610)×295×495 | 780(710)×295×495 | 800(760)×305×550 | 850(780)×350×600 | ||
| Packing (W*H*D) (mm) | 704×324×530 | 818×328×530 | 869×339×588 | 896×387×625 | ||
| Net weight (KGs) | 17 | 19 | 24 | 30 | ||
| Gross weight (KGs) | 20 | 22 | 28 | 34 | ||
| Refrigerant type | R410A | R410A | R410A | R410A | ||
| Refrigerant pipe | Liquid side (mm) | Φ6 | Φ6 | Φ6 | Φ6 | |
| Gas side (mm) | Φ9 | Φ9 | Φ12 | Φ12 | ||
| Max. refrigerant pipe length (m) | 10 | 10 | 10 | 15 | ||
| Max. difference in level (m) | 5 | 5 | 5 | 10 | ||
| Operation temperature range | 16℃-43℃ | 16℃-43℃ | 16℃-43℃ | 16℃-43℃ | ||
| Ambient temperature range | 16℃-48℃ | 16℃-48℃ | 16℃-48℃ | 16℃-48℃ | ||
| Application area (m2) | 10~17 | 13~27 | 20~40 | 30~55 | ||
| Sets per 40ft HQ/20ft | 382/167 | 334/143 | 267/~ | 184/~ | ||
